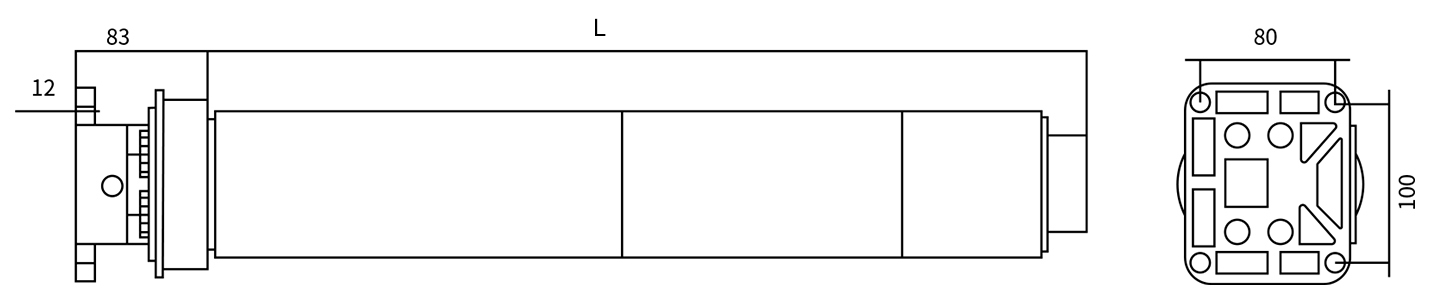

尺寸图：
技术参数：
| 型号 | 扭矩 | 转速 | 电流 | 频率 | 功率 | 电流 | 防护等级 | 运行时间 |
|---|---|---|---|---|---|---|---|---|
| MM92M-N-140/12 | 140N.m | 12rpm | 230V | 50Hz | 800W | 3.5A | IP44 | 4min |
| MM92M-N-180/12 | 180N.m | 12rpm | 230V | 50Hz | 855W | 3.7A | IP44 | 4min |
| MM92M-N-230/12 | 230N.m | 12rpm | 230V | 50Hz | 945W | 4.1A | IP44 | 4min |
| MM92M-N-300/6 | 300N.m | 6rpm | 230V | 50Hz | 880W | 3.8A | IP44 | 4min |
| MM92M-N-330/6 | 330N.m | 6rpm | 230V | 50Hz | 905W | 3.9A | IP44 | 4min |
| MM92M-N-330/7.5 | 330N.m | 7.5rpm | 230V | 50Hz | 925W | 4A | IP44 | 4min |
| MM92M-N-400/6 | 400N.m | 6rpm | 230V | 50Hz | 980W | 4.3A | IP44 | 4min |
| MM92M-N-500/3.5 | 500N.m | 3.5rpm | 230V | 50Hz | 1045W | 4.5A | IP44 | 4min |
