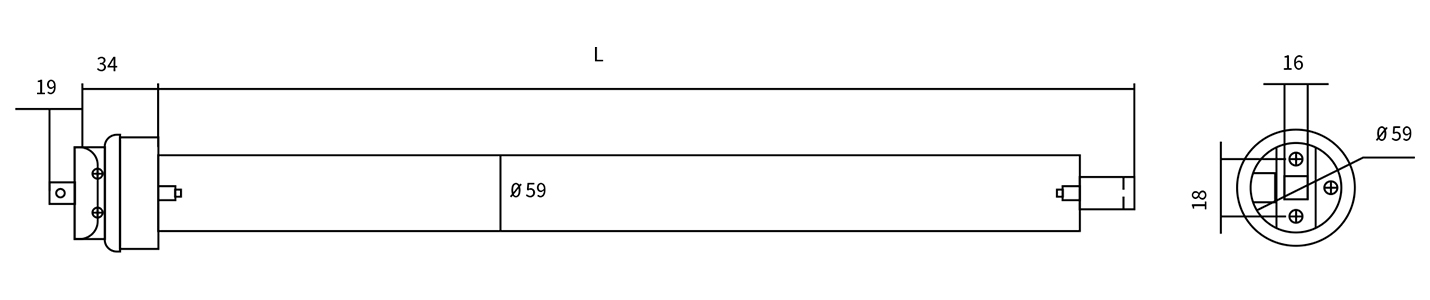

尺寸图:
技术参数:
型号 | 扭矩 | 转速 | 电流 | 频率 | 功率 | 电流 | 防护等级 | 运行时间 |
---|---|---|---|---|---|---|---|---|
MM59M-30/46 | 30N.m | 46rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
MM59M-60/12 | 60N.m | 12rpm | 230V/120V | 50Hz/60Hz | 400W | 1.7A | IP44 | 4min |
MM59M-60/15 | 60N.m | 15rpm | 230V/120V | 50Hz/60Hz | 410W | 1.8A | IP44 | 4min |
MM59M-80/15 | 80N.m | 15rpm | 230V/120V | 50Hz/60Hz | 450W | 2A | IP44 | 4min |
MM59M-80/20 | 80N.m | 20rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
MM59M-80/20 | 80N.m | 20rpm | 230V/120V | 50Hz/60Hz | 450W | 2A | IP44 | 4min |
MM59M-80/26 | 80N.m | 26rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
MM59M-100/12 | 100N.m | 12rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
MM59M-100/15 | 100N.m | 15rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
MM59M-120/9 | 120N.m | 9rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
MM59M-120/12 | 120N.m | 12rpm | 230V/120V | 50Hz/60Hz | 455W | 2A | IP44 | 4min |
MM59M-120/15 | 120N.m | 15rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
MM59M-140/9 | 140N.m | 9rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
MM59M-140/12 | 140N.m | 12rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
MM59M-140/15 | 140N.m | 15rpm | 230V/120V | 50Hz/60Hz | 565W | 2.5A | IP44 | 4min |
MM59M-160/9 | 160N.m | 9rpm | 230V/120V | 50Hz/60Hz | 505W | 2.2A | IP44 | 4min |
MM59M-180/7 | 180N.m | 7rpm | 230V/120V | 50Hz/60Hz | 485W | 2.1A | IP44 | 4min |
MM59M-180/9 | 180N.m | 9rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
MM59M-190/9 | 190N.m | 9rpm | 230V/120V | 50Hz/60Hz | 545W | 2.4A | IP44 | 4min |
