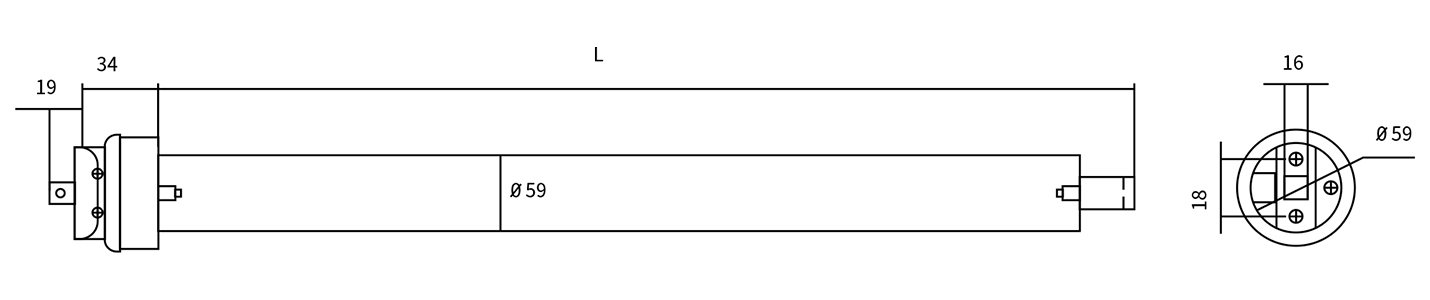

尺寸图：
技术参数：
| 型号 | 扭矩 | 转速 | 电流 | 频率 | 功率 | 电流 | 防护等级 | 运行时间 |
|---|---|---|---|---|---|---|---|---|
| MM59E-60/15 | 60N.m | 15rpm | 230V/120V | 50Hz/60Hz | 400W | 1.7A | IP44 | 4min |
| MM59E-80/15 | 80N.m | 15rpm | 230V/120V | 50Hz/60Hz | 450W | 2A | IP44 | 4min |
| MM59E-100/12 | 100N.m | 12rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
| MM59E-100/15 | 100N.m | 15rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
| MM59E-120/9 | 120N.m | 9rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
| MM59E-120/12 | 120N.m | 12rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
| MM59E-120/15 | 120N.m | 15rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
| MM59E-140/3 | 140N.m | 3rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM59E-140/9 | 140N.m | 9rpm | 230V/120V | 50Hz/60Hz | 505W | 2.2A | IP44 | 4min |
| MM59E-140/12 | 140N.m | 12rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
| MM59E-140/15 | 140N.m | 15rpm | 230V/120V | 50Hz/60Hz | 545W | 2.4A | IP44 | 4min |
| MM59E-160/9 | 160N.m | 9rpm | 230V/120V | 50Hz/60Hz | 505W | 2.2A | IP44 | 4min |
| MM59E-180/7 | 180N.m | 7rpm | 230V/120V | 50Hz/60Hz | 485W | 2.1A | IP44 | 4min |
| MM59E-180/9 | 180N.m | 9rpm | 230V/120V | 50Hz/60Hz | 485W | 2.1A | IP44 | 4min |
| MM59E-190/9 | 190N.m | 9rpm | 230V/120V | 50Hz/60Hz | 545W | 2.4A | IP44 | 4min |
