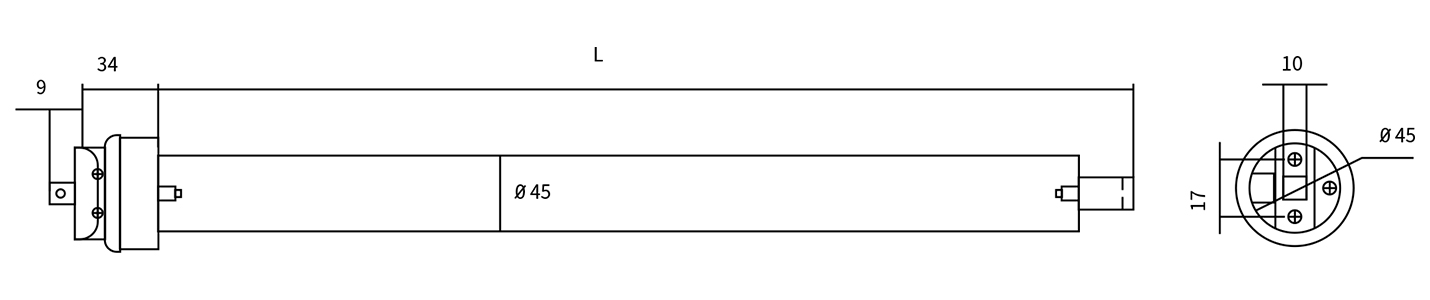

尺寸图：
技术参数：
| 型号 | 扭矩 | 转速 | 电流 | 频率 | 功率 | 电流 | 防护等级 | 运行时间 |
|---|---|---|---|---|---|---|---|---|
| MM45E-10/15 | 10N.m | 15rpm | 230V/120V | 50Hz/60Hz | 145W | 0.6A | IP44 | 4min |
| MM45E-20/15 | 20N.m | 15rpm | 230V/120V | 50Hz/60Hz | 170W | 0.7A | IP44 | 4min |
| MM45E-20/26 | 20N.m | 26rpm | 230V/120V | 50Hz/60Hz | 205W | 0.9A | IP44 | 4min |
| MM45E-30/15 | 30N.m | 15rpm | 230V/120V | 50Hz/60Hz | 240W | 1A | IP44 | 4min |
| MM45E-40/12 | 40N.m | 12rpm | 230V/120V | 50Hz/60Hz | 255W | 1.1A | IP44 | 4min |
| MM45E-40/15 | 40N.m | 15rpm | 230V/120V | 50Hz/60Hz | 285W | 1.2A | IP44 | 4min |
| MM45E-50/12 | 50N.m | 12rpm | 230V/120V | 50Hz/60Hz | 275W | 1.2A | IP44 | 4min |
| MM45E-50/15 | 50N.m | 15rpm | 230V/120V | 50Hz/60Hz | 310W | 1.3A | IP44 | 4min |
| MM45E-60/10 | 60N.m | 10rpm | 230V/120V | 50Hz/60Hz | 285W | 1.2A | IP44 | 4min |
| MM45E-60/12 | 60N.m | 12rpm | 230V/120V | 50Hz/60Hz | 315W | 1.4A | IP44 | 4min |
| MM45E-60/15 | 60N.m | 15rpm | 230V/120V | 50Hz/60Hz | 325W | 1.4A | IP44 | 4min |
| MM45E-60/18 | 60N.m | 18rpm | 230V/120V | 50Hz/60Hz | 345W | 1.5A | IP44 | 4min |
| MM45E-70/9 | 70N.m | 9rpm | 230V/120V | 50Hz/60Hz | 295W | 1.3A | IP44 | 4min |
