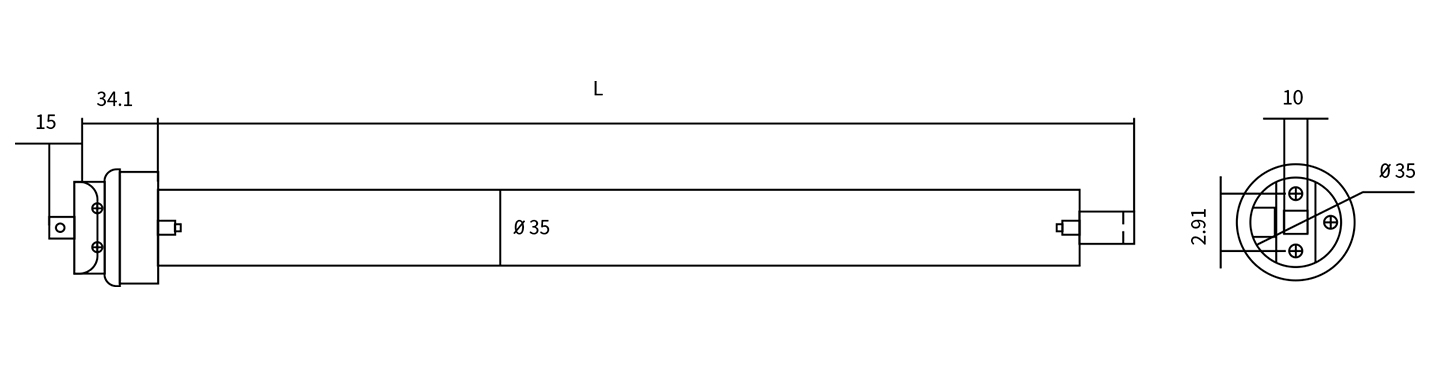

尺寸图：
技术参数：
| 型号 | 扭矩 | 转速 | 电流 | 频率 | 功率 | 电流 | 防护等级 | 运行时间 |
|---|---|---|---|---|---|---|---|---|
| MM35S-10/10 | 10N.m | 10rpm | 12V | 50Hz/60Hz | 60W | 5A | IP44 | ∞ |
| MM35S-10/10 | 10N.m | 10rpm | 24V | 50Hz/60Hz | 60W | 2.5A | IP44 | ∞ |
| MM35S-6/28 | 6N.m | 28rpm | 230V/120V | 50Hz/60Hz | 125W | 0.5A | IP44 | 4min |
| MM35S-10/17 | 10N.m | 17rpm | 230V/120V | 50Hz/60Hz | 125W | 0.5A | IP44 | 4min |
| MM35S-12/14 | 12N.m | 14rpm | 230V/120V | 50Hz/60Hz | 140W | 0.6A | IP44 | 4min |
