Class belongs to: Curtain Motors
Product Features
- Silent Design
- Mid-Way Position Function
- Light Touch-Start Function
- Memory Limit Function
- Smart Home System Compatibility
- Wokrs With All Smart Home Systems
Certification

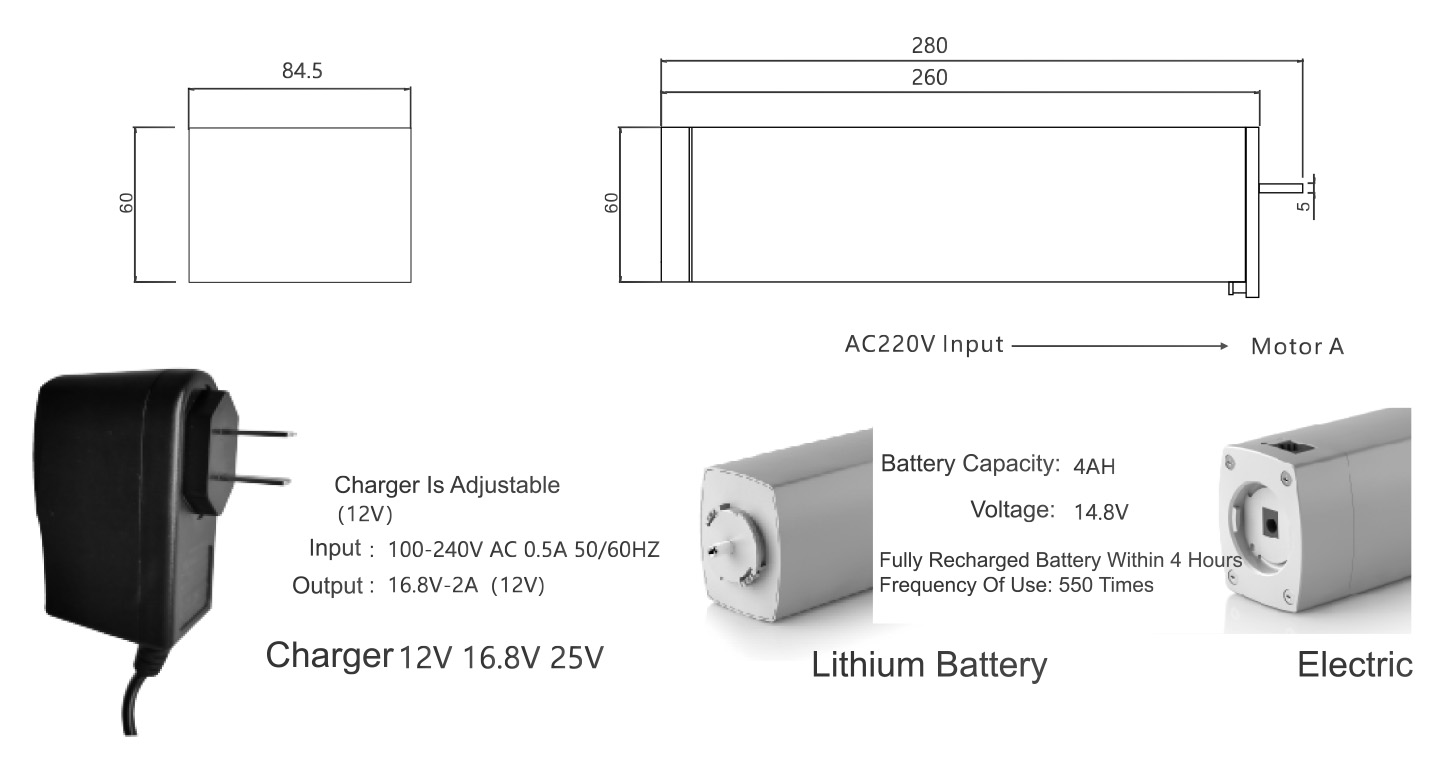

Dimensional Drawing
Technical Parameter
Model | Torque | Speed | Voltage | Frequency | Degree of Protection | Running Time |
---|---|---|---|---|---|---|
MM92D | 1.2N.m | 14cm/s | 100-240V | 50Hz/60Hz | IP20 | ∞ |
Product Detail
1. Motor Characteristic
Completely mechanical clutch design, stable performance, low noise, high transmission efficiency.
2. Electronic Memory Limit Function
No need to manually set the limit position, greatly reduces installation time.
Electronic memory limit function automatically eliminates the cumulative error of daily movement so that limit positions remain accurate.
3. Resistance And Stop Function
When you pull the curtains in the process of opening or closing by hand, the curtains will stop automatically when encountering resistance.
4. Built-In Receiver Function
Curtain motors with built-in remote control function can be operated with all MIGA single and multi-channel emitters.
5. Manual Curtain Opening Function
When the electric curtain motor is powered on or off, curtains can be opened or closed through gently pulling by hand (just like ordinary curtains).
6. Ligth Touch-Start Function
By pulling the curtains gently in a certain direction, the curtains will run automatically until they are fully opened or closed – and then stop automatically.
7. Mid-way Position Function
Regarding light intensity, you can set the angle of the curtains to adjust the indoor lighting.
8. Elegant Operation Function
The DC curtain motor has a soft start and soft stop function. The speed slows down significantly at start up and at limit, making the curtains move more elegantly.
9. Safety Voltage Function
24V/12V low voltage output effectively protects the safety of installers and users & prevents accidents.
10. Silent Design
Adopts sound insulation and noise reduction design. The noise is less than 40db.
11. Compatible multiple Function
Compatible with various control systems. Such as: all kinds of smart home systems,RS232/RS485 control, infrared control etc.
12. Long Lifetime
High-strength synchronous belt is especially chosen for its anti-aging and anti-acid function.
The system passes the test of 15000 times without deformation.
Calculated twice a day, the life span is up to 20 years
