MM-6FL
Class belongs to: Central Motors
Product Features
- Lightweight, compact, and of high quality;
- Low noise, minimal vibration, and low power consumption;
- Attractive design with advanced construction; powerful performance, energy-efficient;
- Easy installation, convenient and thoughtful; electric or manual operation, dual support;
- Remote control operation, fire and theft prevention; chain break protection, safe and reliable.
- 5-Year Warranty
Certification

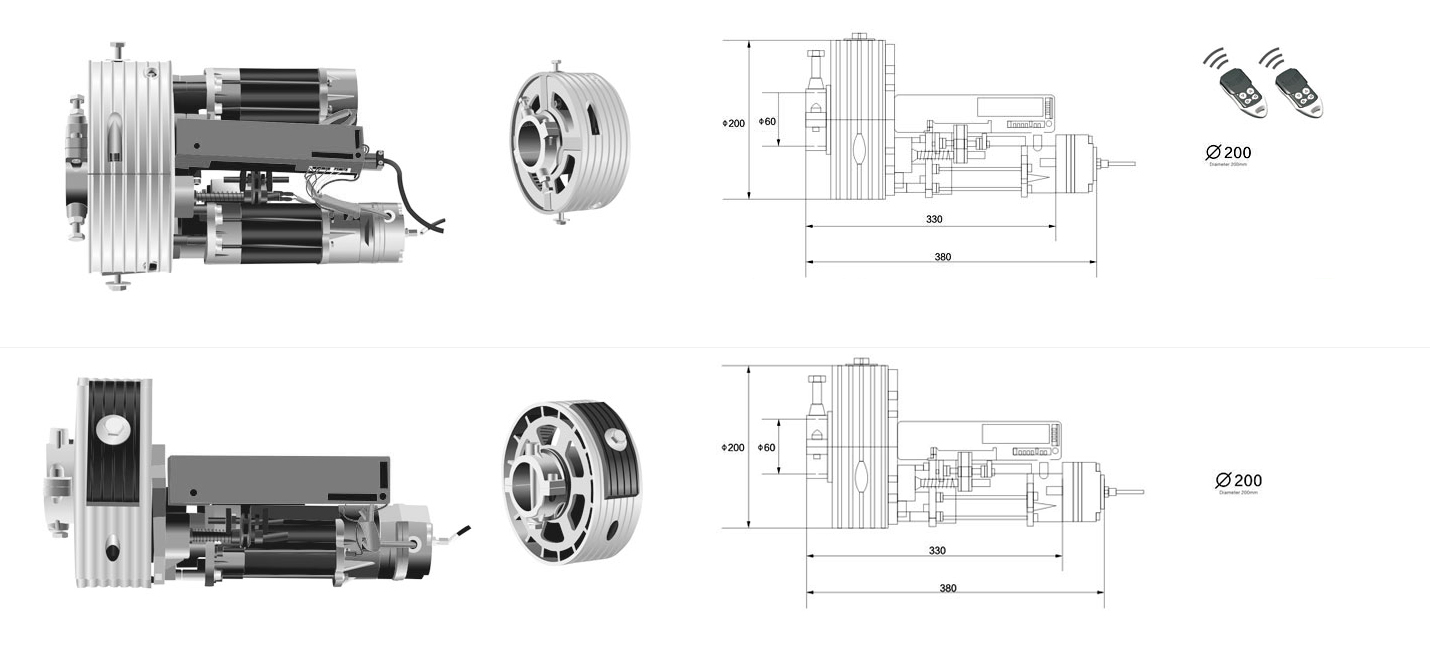

Dimensional Drawing
Technical Parameter
| Model | Torque | Speed | Voltage | Frequency | Power | Currency | Degree of Protection | Running Time |
|---|---|---|---|---|---|---|---|---|
| MM200/60-120R | 120N.m | 10rpm | 230V | 50Hz | 460W | 2.0A | IP44 | 4min |
| MM200/60-150R | 150N.m | 10rpm | 230V | 50Hz | 520W | 2.3A | IP44 | 4min |
| MM200/60-180R | 180N.m | 10rpm | 230V | 50Hz | 580W | 2.6A | IP44 | 4min |
| MM200/60-120R | 120N.m | 12rpm | 110V | 50Hz | 530W | 4.3A | IP44 | 4min |
| MM200/60-150R | 150N.m | 12rpm | 110V | 50Hz | 590W | 5.0A | IP44 | 4min |
| MM200/60-180R | 180N.m | 12rpm | 110V | 50Hz | 635W | 5.5A | IP44 | 4min |
| MM200/60-120H | 120N.m | 10rpm | 230V | 50Hz | 460W | 2.0A | IP44 | 4min |
| MM200/60-150H | 150N.m | 10rpm | 230V | 50Hz | 520W | 2.3A | IP44 | 4min |
| MM200/60-180H | 180N.m | 10rpm | 230V | 50Hz | 580W | 2.6A | IP44 | 4min |
| MM200/60-120H | 120N.m | 12rpm | 110V | 50Hz | 530W | 4.3A | IP44 | 4min |
| MM200/60-150H | 150N.m | 12rpm | 110V | 50Hz | 590W | 5.0A | IP44 | 4min |
| MM200/60-180H | 180N.m | 12rpm | 110V | 50Hz | 635W | 5.5A | IP44 | 4min |
