MM92S
Class belongs to: 92mm Tubular Motor (S,M,M-N)
Product Features
- Mechanical Limit Switch
- Precise Setting of Limit Positions
- 5-Year Warranty
- Stable Performance
- Low Noise
- Easy to Install
- Optional colors: Yellow, White, Blue, Green, and customized
Certification

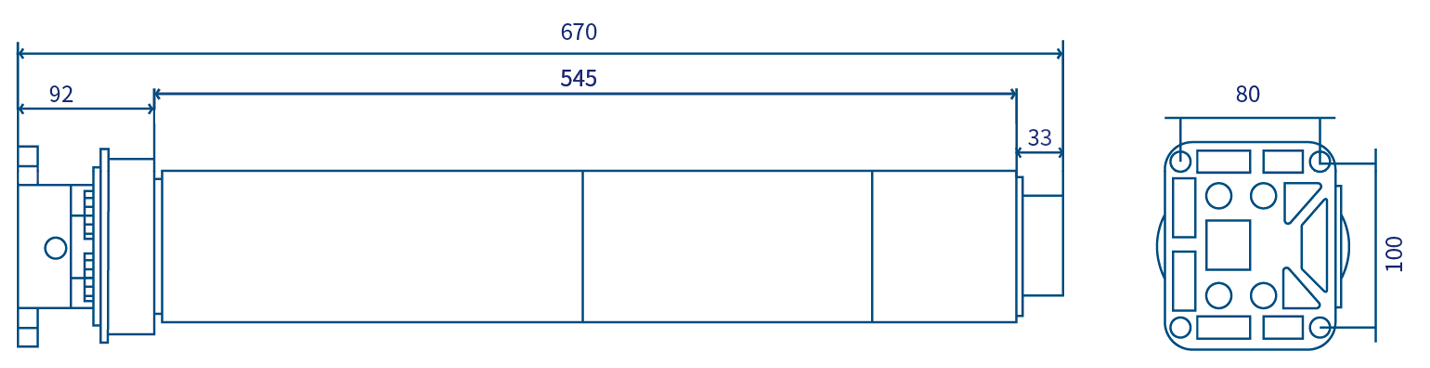

Dimensional Drawing
Technical Parameter
| Model | Torque | Speed | Voltage | Frequency | Power | Currency | Degree of Protection | Running Time |
|---|---|---|---|---|---|---|---|---|
| MM92S-140/12 | 140N.m | 12rpm | 230V | 50Hz | 800W | 3.5A | IP44 | 4min |
| MM92S-180/12 | 180N.m | 12rpm | 230V | 50Hz | 855W | 3.7A | IP44 | 4min |
| MM92S-230/12 | 230N.m | 12rpm | 230V | 50Hz | 945W | 4.1A | IP44 | 4min |
| MM92S-300/6 | 300N.m | 6rpm | 230V | 50Hz | 880W | 3.8A | IP44 | 4min |
| MM92S-330/6 | 330N.m | 6rpm | 230V | 50Hz | 905W | 3.9A | IP44 | 4min |
| MM92S-330/7.5 | 330N.m | 7.5rpm | 230V | 50Hz | 925W | 4A | IP44 | 4min |
| MM92S-400/6 | 400N.m | 6rpm | 230V | 50Hz | 980W | 4.3A | IP44 | 4min |
| MM92S-500/3.5 | 500N.m | 3.5rpm | 230V | 50Hz | 1045W | 4.5A | IP44 | 4min |
