MM59S
Class belongs to: 59mm Tubular Motor (S,R,E,M,MR)
Product Features
- Mechanical Limit Switch
- Precise Setting of Limit Positions
- 5-Year Warranty
- Stable Performance
- Low Noise
- Easy to Install
- Optional colors: Yellow, White, Blue, Green, and customized
Certification

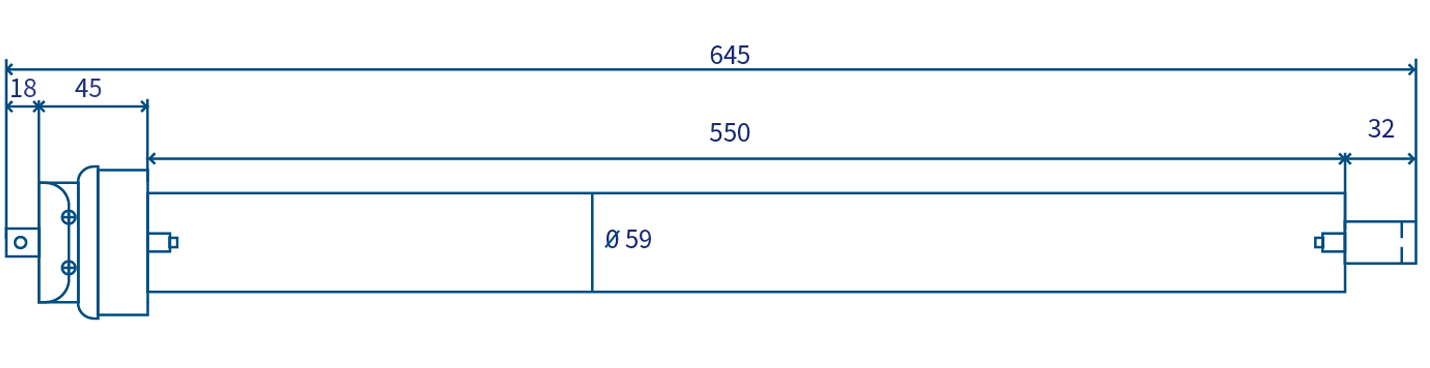

Dimensional Drawing
Technical Parameter
| Model | Torque | Speed | Voltage | Frequency | Power | Currency | Degree of Protection | Running Time |
|---|---|---|---|---|---|---|---|---|
| MM59S-50/12 | 50N.m | 12rpm | 12V/24V | 50Hz/60Hz | 150W | 1.5A | IP44 | 15min |
| MM59S-80/10 | 80N.m | 10rpm | 12V/24V | 50Hz/60Hz | 160W | 1.6A | IP44 | 15min |
| MM59S-30/46 | 30N.m | 46rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM59S-60/12 | 60N.m | 12rpm | 230V/120V | 50Hz/60Hz | 400W | 1.7A | IP44 | 4min |
| MM59S-60/15 | 60N.m | 15rpm | 230V/120V | 50Hz/60Hz | 410W | 1.8A | IP44 | 4min |
| MM59S-80/15 | 80N.m | 15rpm | 230V/120V | 50Hz/60Hz | 450W | 2A | IP44 | 4min |
| MM59S-80/20 | 80N.m | 20rpm | 230V/120V | 50Hz/60Hz | 450W | 2A | IP44 | 4min |
| MM59S-80/20 | 80N.m | 20rpm | 230V/120V | 50Hz/60Hz | 480W | 2.1A | IP44 | 4min |
| MM59S-80/26 | 80N.m | 26rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM59S-100/12 | 100N.m | 12rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
| MM59S-100/15 | 100N.m | 15rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
| MM59S-120/9 | 120N.m | 9rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
| MM59S-120/12 | 120N.m | 12rpm | 230V/120V | 50Hz/60Hz | 455W | 2A | IP44 | 4min |
| MM59S-120/15 | 120N.m | 15rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
| MM59S-140/3 | 140N.m | 3rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM59S-140/9 | 140N.m | 9rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM59S-140/12 | 140N.m | 12rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
| MM59S-140/15 | 140N.m | 15rpm | 230V/120V | 50Hz/60Hz | 565W | 2.5A | IP44 | 4min |
| MM59S-160/9 | 160N.m | 9rpm | 230V/120V | 50Hz/60Hz | 505W | 2.2A | IP44 | 4min |
| MM59S-180/9 | 180N.m | 9rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM59S-180/7 | 180N.m | 7rpm | 230V/120V | 50Hz/60Hz | 485W | 2.1A | IP44 | 4min |
| MM59S-190/9 | 190N.m | 9rpm | 230V/120V | 50Hz/60Hz | 545W | 2.4A | IP44 | 4min |
