MM45M
Class belongs to: 45mm Tubular Motor (S,R,E,M,MR)
Product Features

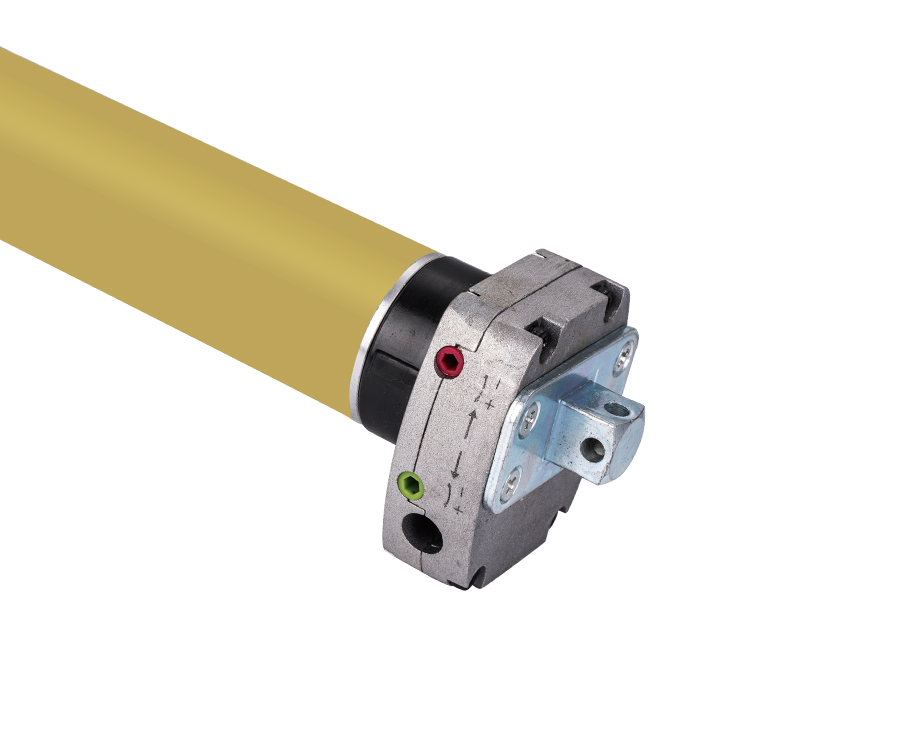

- Mechanical Limit Switch + Manual Override
- Precise Setting of Limit Positions
- 5-Year Warranty
- Stable Performance
- Low Noise
- Easy to Install
- Optional colors: Yellow, White, Blue, Green, and customized
Certification

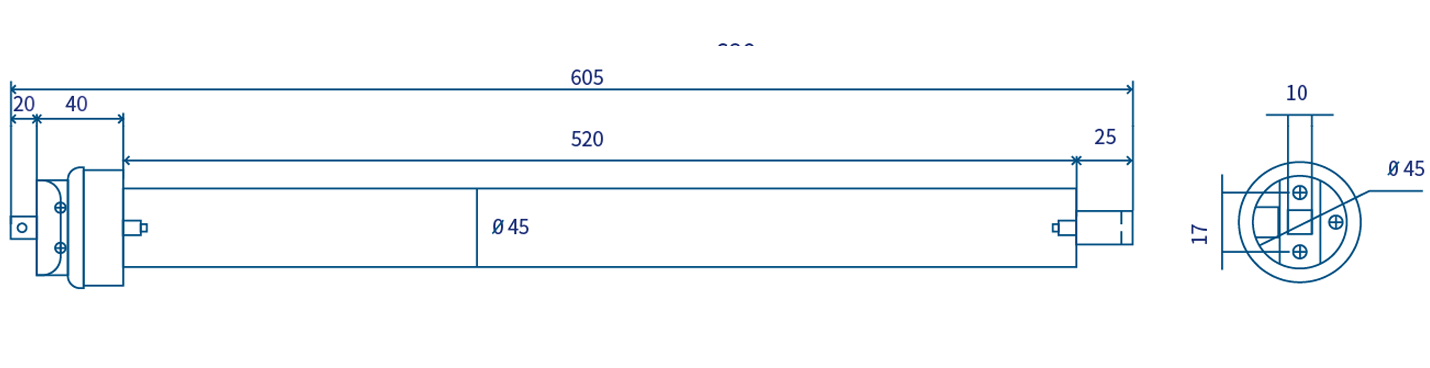

Dimensional Drawing
Technical Parameter
| Model | Torque | Speed | Voltage | Frequency | Power | Currency | Degree of Protection | Running Time |
|---|---|---|---|---|---|---|---|---|
| MM45M-60/15 | 60N.m | 15rpm | 230V/120V | 50Hz/60Hz | 400W | 1.7A | IP44 | 4min |
| MM45M-80/15 | 80N.m | 15rpm | 230V/120V | 50Hz/60Hz | 450W | 2A | IP44 | 4min |
| MM45M-100/12 | 100N.m | 12rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
| MM45M-100/15 | 100N.m | 15rpm | 230V/120V | 50Hz/60Hz | 440W | 1.9A | IP44 | 4min |
| MM45M-120/9 | 120N.m | 9rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
| MM45M-120/12 | 120N.m | 12rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
| MM45M-120/15 | 120N.m | 15rpm | 230V/120V | 50Hz/60Hz | 445W | 1.9A | IP44 | 4min |
| MM45M-140/3 | 140N.m | 3rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM45M-140/9 | 140N.m | 9rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM45M-140/12 | 140N.m | 12rpm | 230V/120V | 50Hz/60Hz | 500W | 2.2A | IP44 | 4min |
| MM45M-140/15 | 140N.m | 15rpm | 230V/120V | 50Hz/60Hz | 525W | 2.3A | IP44 | 4min |
| MM45M-160/9 | 160N.m | 9rpm | 230V/120V | 50Hz/60Hz | 505W | 2.2A | IP44 | 4min |
| MM45M-180/7 | 180N.m | 7rpm | 230V/120V | 50Hz/60Hz | 485W | 2.1A | IP44 | 4min |
