MM35M
Class belongs to: 35mm Tubular Motor (S,R,E,M,IT)
Product Features
- Manual Limit Switch
- Precise Setting of Limit Positions
- 5-Year Warranty
- Stable Performance
- Low Noise
- Easy to Install
- Optional colors: Yellow, White, Blue, Green, and customized
Certification

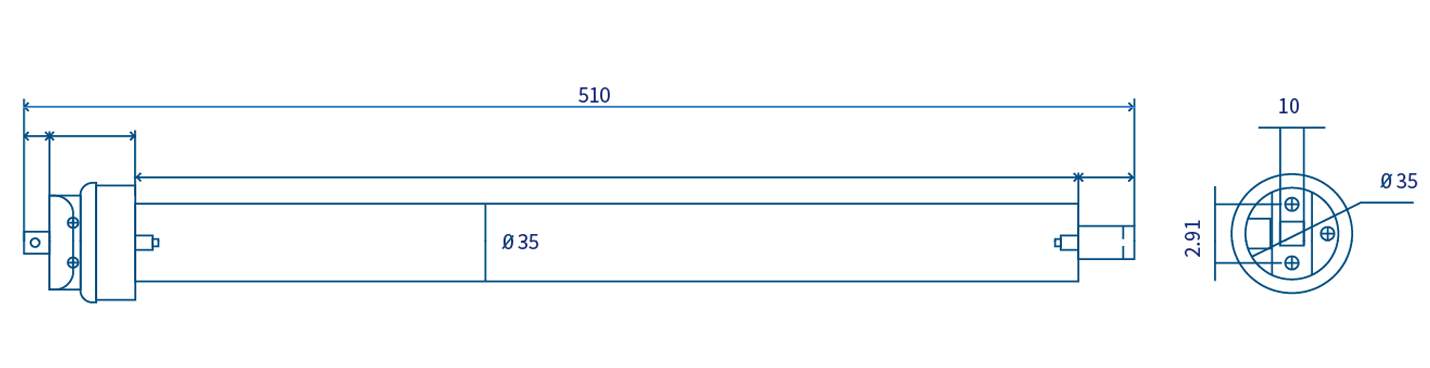

Dimensional Drawing
Technical Parameter
| Model | Torque | Speed | Voltage | Frequency | Power | Currency | Degree of Protection | Running Time |
|---|---|---|---|---|---|---|---|---|
| MM35M-10/10 | 10N.m | 10rpm | 12V | 50Hz/60Hz | 60W | 5A | IP44 | ∞ |
| MM35M-10/10 | 10N.m | 10rpm | 24V | 50Hz/60Hz | 60W | 2.5A | IP44 | ∞ |
| MM35-6/28 | 6N.m | 28rpm | 230V/120V | 50Hz/60Hz | 125W | 0.5A | IP44 | 4min |
| MM35M-10/17 | 10N.m | 17rpm | 230V/120V | 50Hz/60Hz | 125W | 0.5A | IP44 | 4min |
| MM35M-12/14 | 12N.m | 14rpm | 230V/120V | 50Hz/60Hz | 140W | 0.6A | IP44 | 4min |
Product Detail
