MM25S
Class belongs to: 25mm Tubular Motor (S,TE,IT,IX,LE)
Product Features
- Mechanical Limit Switch
- Precise Setting of Limit Positions
- 5-Year Warranty
- Stable Performance
- Low Noise
- Easy to Install
- Optional colors: Yellow, White, Blue, Green, and customized
Certification

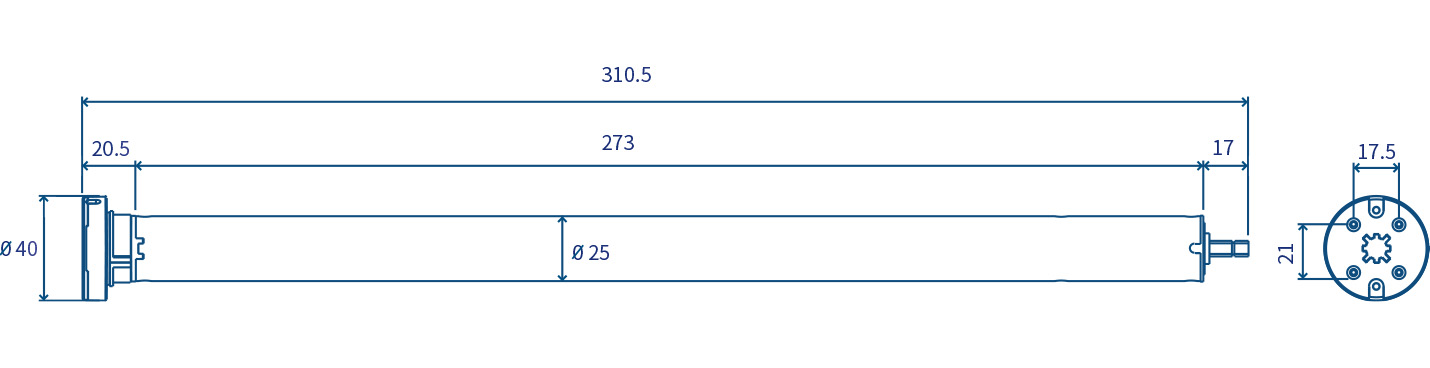

Dimensional Drawing
Technical Parameter
| Model | Torque | Speed | Voltage | Power | Currency | Degree of Protection | Running Time |
|---|---|---|---|---|---|---|---|
| MM25S-0.7/28 | 0.7N.m | 28rpm | 12V | 10W | 0.85A | IP44 | 4min |
| MM25S-1.1/28 | 1.1N.m | 28rpm | 12V | 12W | 1A | IP4 | 4min |
| MM25S-1.5/28 | 1.5N.m | 28rpm | 12V | 15W | 1.3A | IP4 | 4min |
